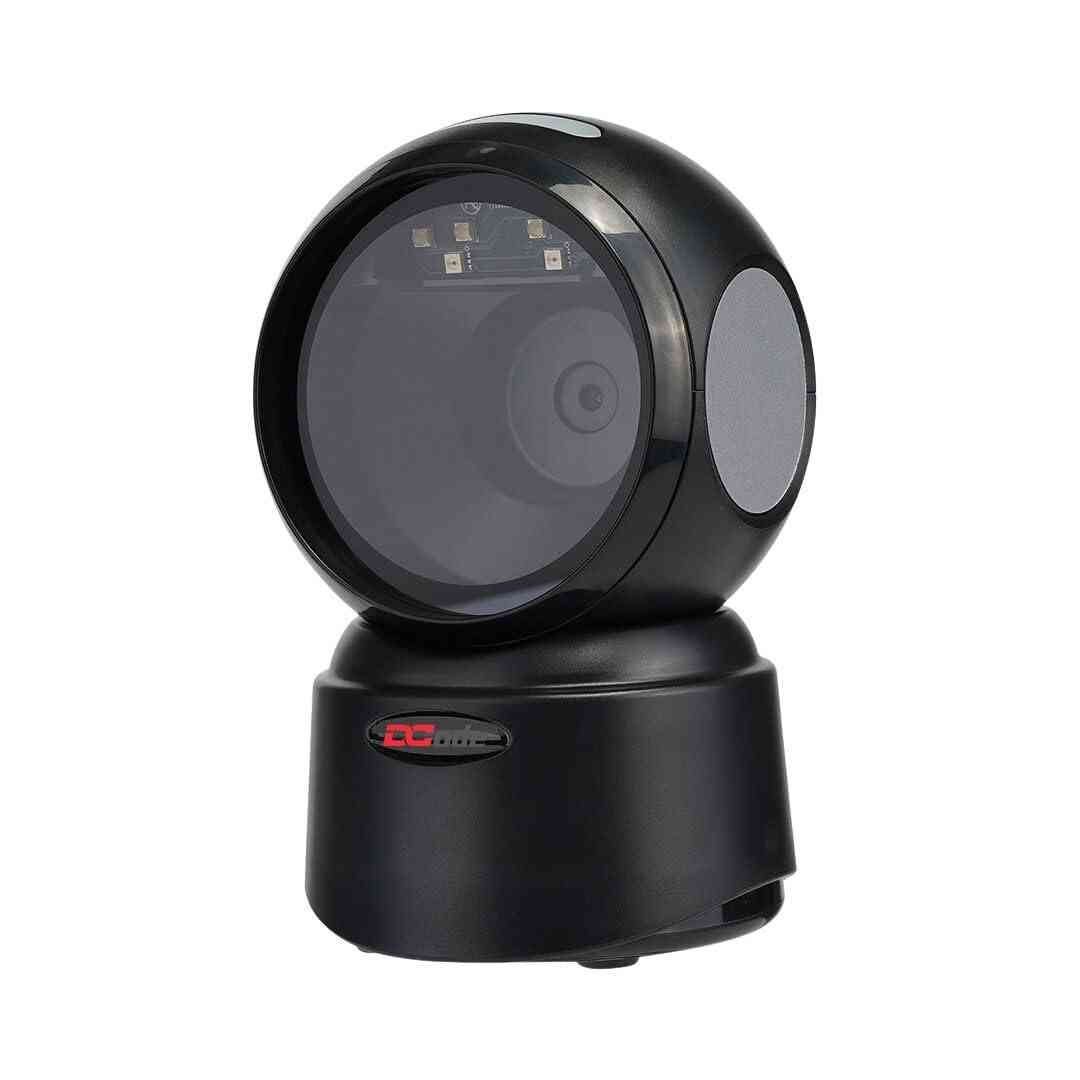

Scanner Barcode DCode DC5132_2D Wired TT | Omnidirectional Table Top Barcode Scanner For 1D & 2D Barcodes | Color Black
A 20-line scan omnidirectional pattern provides aggressive scanning as an additional benefit to hand presentation applications.
The scanner has an engineered “sweet spot” to optimize scan performance and first pass read rate.
An adjustable scan head enables users to tilt the scanner +65° for targeted scanning of larger products.
| Product Specifcation:
IV-5132 2D Omni-directional Barcode Scanner
|
|
| Scan performance | |
| Scanning type | DC-5132 2D Omni-directional |
| Optical resolution | 640*480 |
| Lighting source | red LED supplement |
| Scanning speed | 500 times/s |
| Scanning angle | rotate Roll:0-360 degree, tilt pitch: ±65 degree, deflect SKEW: ±60 degree |
| Sweeping barcode type | paper, thin film medium one- dimensional; mobile phone, flat screen, etc. |
| Printing contrast | 20% |
| Error rate | ≤1/2,000,000 |
| Interface type: USB: | USB:HID KEYBOARD (default mode), USB virtual serial port |
| IP level | up to IP5X standard |
| Prompt mode | buzzer sound prompt and green light prompt |
| Decode Capability | 1D- 1D:Code 39, Full ASCII Code 39, Code 32, Code 128, Code 93,Code 11, Codabar/NW7, All UPC/EAN/JAN code (EAN-13,EAN- 8, UPC-A, UPC-E, EAN-128),
Interleave 2 of 5, STD 2of 5, Industrial 2 of 5, matrix 2 of 5, Chinese Postage Code,IATA, MSI/PLESSY, Italian Pharmacy Code, Industrial 2 of 5,BC-412 2D-QR Code, PDF417,Data Matrix |
| Electrical parameters | |
| Electric voltage | 4.5~5.5V DC V1 ± 5% |
| Working current | Max 130mA ; Operating 80mA |
| Optical safety certi?cation | ICE4247* IEC60950 |
| Electromagnetic compatibility | En55022, EN55024 |
| MECHANICAL PARAMETER | |
| Size | 104mm*96.3mm*166mm |
| Interface | USB(Option RS-232) |
| Cable length | 150cm |
| Weight | 300g |
| Drop | 0.8m |
| Environoment parameters | |
| Working temperature | -20°C~50°C |
| Storage temperature | -20°C~70°C |
| Working humidity | 0%~80% |
| Drop test | 1.5m fall to concrete |
| Packing details` | |
| * Standard list: Omini-directional Scanner*1, Cable *1, Manual *1, Box *1.
* Single package size: 182*123*111mm * Single gross weight: 0.5kg |
